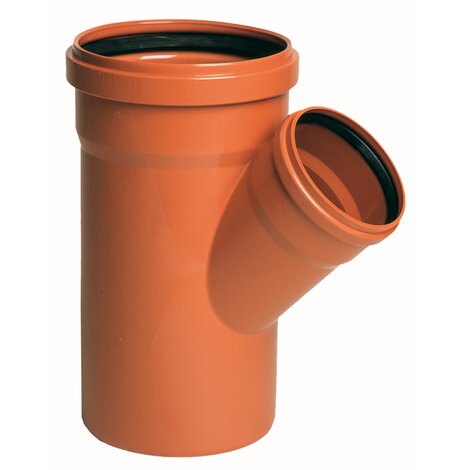

Derivación 45° m/h reducida
Derivación 45° macho/hembra, reducida al centro, conjunta labiada. Color Teja.
Referencia | Características | Unidades por caja | Medida | DN | product.detail.attribute.dn1 | product.detail.attribute.l1 | product.detail.attribute.l2 | product.detail.attribute.l3 | product.detail.attribute.fieldS | product.detail.attribute.s1 | product.detail.attribute.z1 | product.detail.attribute.z2 | product.detail.attribute.z3 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
032068 | Teja | 4 | 160-110 | 160 | 110 | 82 | 74 | 56 | 4.0 | 3.2 | 2 | 168 | 176 |
032069 | Teja | 4 | 160-125 | 160 | 125 | 83 | 74 | 62 | 4.0 | 3.2 | 12 | 180 | 185 |
032070 | Teja | 2 | 200-110 | 200 | 110 | 100 | 86 | 56 | 4.9 | 3.2 | 17 | 191 | 200 |
032071 | Teja | 2 | 200-125 | 200 | 125 | 100 | 86 | 62 | 4.9 | 3.2 | 7 | 201 | 212 |
032072 | Teja | 2 | 200-160 | 200 | 160 | 100 | 86 | 74 | 4.9 | 4.0 | 18 | 228 | 232 |
032073 | Teja | 1 | 250-160 | 250 | 160 | 131 | 103 | 74 | 6.2 | 4.0 | 3 | 250 | 261 |
032074 | Teja | 1 | 250-200 | 250 | 200 | 134 | 103 | 86 | 6.2 | 4.9 | 24 | 275 | 280 |
032075 | Teja | 1 | 315-160 | 315 | 160 | 144 | 114 | 75 | 7.7 | 4.0 | 33 | 289 | 306 |
032076 | Teja | 1 | 315-200 | 315 | 200 | 144 | 114 | 85 | 7.7 | 4.9 | 5 | 317 | 337 |
032135 | Teja | 1 | 315-250 | 315 | 250 | 156 | 114 | 99 | 7.7 | 6.2 | 28 | 335 | 344 |
032136 | Teja | 1 | 400-160 | 400 | 160 | 165 | 170 | 95 | 9.8 | 4.0 | 69 | 319 | 385 |
032137 | Teja | 1 | 400-200 | 400 | 200 | 165 | 180 | 105 | 9.8 | 4.9 | 50 | 355 | 435 |
032138 | Teja | 1 | 400-250 | 400 | 250 | 165 | 180 | 130 | 9.8 | 6.2 | 35 | 440 | 445 |
032139 | Teja | 1 | 400-315 | 400 | 315 | 160 | 170 | 135 | 9.8 | 6.9 | 73 | 480 | 530 |
032140 | Teja | 1 | 500-160 | 500 | 160 | 200 | 250 | 90 | 10.5 | 4.0 | -65 | 450 | 680 |
032141 | Teja | 1 | 500-200 | 500 | 200 | 200 | 250 | 110 | 10.5 | 4.9 | 87 | 400 | 575 |
032142 | Teja | 1 | 500-250 | 500 | 250 | 200 | 250 | 110 | 12.3 | 6.2 | -10 | 510 | 530 |
032143 | Teja | 1 | 500-315 | 500 | 315 | 200 | 250 | 135 | 12.3 | 6.9 | -45 | 475 | 503 |
032144 | Teja | 1 | 500-400 | 500 | 400 | 200 | 250 | 180 | 12.3 | 9.8 | 115 | 615 | 640 |
032174 | Teja | 1 | 315-110 | 315 | 110 | 190 | 117 | 55 | 7.7 | 3.2 | -79 | 287 | 315 |
032175 | Teja | 1 | 315-125 | 315 | 125 | 180 | 117 | 62 | 7.7 | 3.2 | -69 | 287 | 310 |
032176 | Teja | 1 | 400-110 | 400 | 110 | 165 | 170 | 65 | 9.8 | 3.2 | -130 | 450 | 435 |
032177 | Teja | 1 | 400-125 | 400 | 125 | 175 | 145 | 65 | 9.8 | 3.2 | -20 | 430 | 380 |
032212 | Teja | 1 | 500-110 | 500 | 110 | 180 | 250 | 65 | 10.5 | 3.2 | -185 | 360 | 420 |
032213 | Teja | 1 | 500-125 | 500 | 125 | 165 | 170 | 65 | 10.5 | 3.2 | -55 | 510 | 457 |
